UNIMET® 610ST
Test system for electrical equipment and machines
The UNIMET® 610ST stores the “first measured value” in accordance with the standard so that it can be used as a reference value for subsequent comparisons.
With the UNIMET® 610ST you can design all your tests yourself. A device protocol history can be easily created using the PC software supplied (UNIMET® Control Center).
Test system for electrical equipment and machines
The UNIMET® 610ST stores the “first measured value” in accordance with the standard so that it can be used as a reference value for subsequent comparisons.
With the UNIMET® 610ST you can design all your tests yourself. A device protocol history can be easily created using the PC software supplied (UNIMET® Control Center).
Caratteristiche
- Easy operation and handling through Windows interface
- Data exchange and storage via Control Center
- Automatic, semi-automatic or manual test sequence
- Data input via touch screen, keyboard or barcode
- Visual inspection, electrical safety and functional test user-definable
- Test sequences user-definable
- Data storage > 10,000 data records
- Filter function for fast data selection
- Management of test dates
- Multitenancy
- Catalogue systems
- Test probe with two switching contacts – for semi-automatic testing of parts not connected to PE
- Compatible with the most common application programs, e. g. wave Facilities®, NOVA-FM and Fundamed
Interface diversity
- RS-232 interface
- USB port for printer, scanner, keyboard and USB stick
- PS/2 port for scanner and keyboard
- Network connection via Ethernet (optional)
Standard accessories

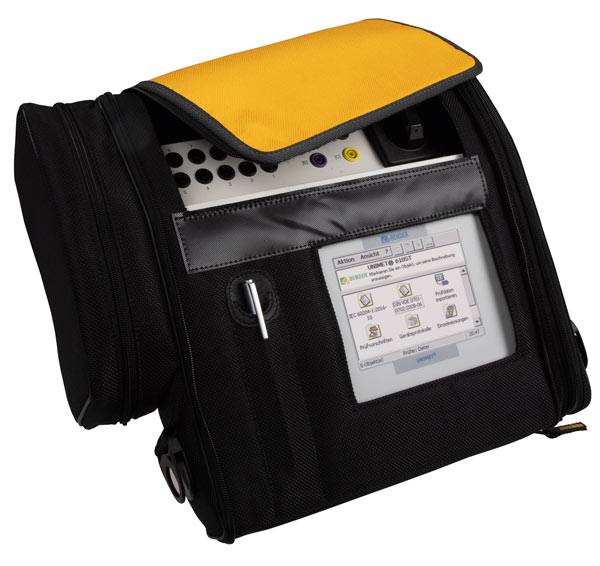

- Robust protection and transport bag with universal carrying concept
- Measuring lead with test probe
- Measuring lead with test terminal
- Null modem cable
- VK 701-7 for testing non-heating appliances
- Data management software UNIMET® Control Center
Service
- Calibration interval 36 months
- Warranty period 36 months
- Free of charge hotline
- Future-proof through software updates
- Briefing seminars in Grünberg
Applicazioni
Standard-conforming tests according to:
- DIN EN 60204-11:2019-06
- VDE 0113-11:2019-06
- DIN VDE 0701-0702:2008-06
Standard-conforming measurements
- Protective earth resistance
- Insulation resistance
- Protective earth conductor current
- Equipment leakage current
- Touch current
- Direct method
- Differential measurement
- Alternative method
UNIMET® 610ST Variante/i
| Device | Art. No. |
|---|---|
| UNIMET® 610ST (DE/DE) | B96026020 |
Accessori opzionali per UNIMET® 610ST
| Type | Description | Art. Nr. |
|---|---|---|
| VK701-1 | Adapter Schuko/non-heating devices | B96020048 |
| VK701-2 | Adapter CEE 16 A 5-pole | B96020049 |
| VK701-4 | Adapter CEE 32 A 5-pole | B96020051 |
| VK701-5 | Adapter CEE 63 A 5-pole | B96020052 |
| VK701-6 | Adapter Schuko | B96020067 |
| VK701-7 | Adapter non-heating devices | B96020066 |
| VK701-8 | Adapter kit 16 A for DS32A | B96020066 |
| RS-232/RS-232 interface cable | For connecting the test system to a PC, 9-pin, female-female (null-modem cable) | B96012012 |
| USB2.0-RS232-Converter | Convertercable USB/RS-232 for UNIMET® | B96020086 |
| TP800 | Active test probe (with switch) | B96020080 |
| Test probe | Measuring lead, 3 m, with black test probe | B928748 |
| Cable 150cm | Measuring lead, 150 cm, 4-mm connector | B928703 |
| Test terminal | Test terminal black | B928741 |
| Stylus Pen | Touchscreen pen | B928749 |
| Barcode scanner PS/2 | for UNIMET® 610ST (PS/2 port) | B96020082 |
| Barcode scanner USB | for UNIMET® 610ST (USB port) | B96020092 |
| Scanner bag UNIMET® | for Barcode scanner | B96020102 |
| Flex keyboard | for UNIMET® 610ST (USB port) | B96020093 |
| TP16 | Cable drum with measuring cable, cable length 16 m | B96020054 |
| DS32A | Three-phase adapter for testing three-phase devices during operation (acc. DIN EN 62353, DIN VDE 0751-1,DIN VDE 0701-0702) | B96020098 |
Download per UNIMET® 610ST
| Nome | Tipo | Dimensione | Lingua | Timestamp | D-/B-Numero |
|---|---|---|---|---|---|
| UNIMET® 610ST - 810ST | Dichiarazioni di conformità CE | 88.7 KB | 2022/11/1010.11.2022 | ||
| Verpackungsinhalt UNIMET® 610ST | Manuali di istruzioni | 859.3 KB | DE | 2019/07/1212.07.2019 | D00380 |
| Contents of packaging UNIMET® 610ST | Manuali di istruzioni | 859.3 KB | EN | 2019/07/1212.07.2019 | D00380 |
| UNIMET® 610ST | Manuali di istruzioni | 4.4 MB | DE | 2019/07/1212.07.2019 | D00380 |
| UNIMET® 610ST | Flyer | 339.4 KB | DE | 2020/01/0606.01.2020 | D00380 |
| UNIMET® 610ST | Depliant prodotto | 490.4 KB | DE | 2020/03/2525.03.2020 | D00380 |
| UNIMET® 610ST | Depliant prodotto | 489.5 KB | EN | 2020/03/2525.03.2020 | D00380 |
