UNIMET® 400ST
The lightweight version for mobile applications
Intelligent and practice-oriented
- Safe testing of medical electrical equipment with patient connections, hospital beds, care beds and electrical equipment
- Easy-to-use
- Classification help
- Four operating keys
The lightweight version for mobile applications
Intelligent and practice-oriented
- Safe testing of medical electrical equipment with patient connections, hospital beds, care beds and electrical equipment
- Easy-to-use
- Classification help
- Four operating keys
Caratteristiche
- Easy and safe to handle
- Automatic and manual test sequences
- Data input via keyboard or barcode scanner
- Visual inspection, functional test and electrical tests
- 600 data records can be stored
- Data exchange and storage via UNIData 300 software
- Compatible with common application programs z. B. visual FM, MT Data and Fundamed
Wide variety of interfaces
- RS-232 connection
- PS/2-port for scanner and keyboard
- Centronic connection for the printer
Standard accessories

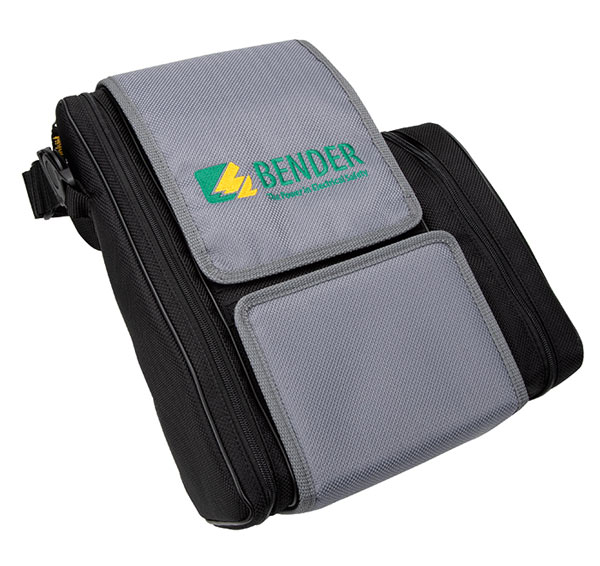

- Carrier bag of robust design, universal carrying concept
- Measuring lead with test probe and test terminal
- 0-modem cable
- Converter cable USB/RS-232
- Data management software UNIData 300
Service
- Calibration interval 36 months
- 36-month warranty
- Software updates for effective application in the future
Applicazioni
Standard-compliant tests in accordance with:
- IEC 62353:2007-05
- DIN EN 62353 (VDE 0751-1):2008-08
- ÖVE/ÖNORM EN 62353:2009-01
- DIN VDE 0701-0702:2008-06
- ÖVE E8701-1:03-01
The following tests can be performed
- Protective earth conductor resistance
- Insulation resistance
- PE current
- Equipment leakage current
- Touch current
- Applied part leakage current
Measurement methods of leakage currents
- Direct measurement method
- Differential measurement method
- Equipment leakage current -alternative measurement
Further measurements and tests
- Mains voltage
- Current consumption
- Visual inspection
- Functional test
UNIMET® 400ST Variante/i
Country specific device
| Device | Art.-No. |
|---|---|
| UNIMET® 400ST (D/D) | B96024000 |
| UNIMET® 400ST (GB/GB) | B96024001 |
Accessori opzionali per UNIMET® 400ST
| Device | Art.-No. |
|---|---|
| Barcode scanner-PS/2 | B96020082 |
| DS32A Three-phase adaptor for testing medical electrical three-phase devices in operating condition (acc. to DIN EN 62353, DIN VDE 0751-1, DIN VDE 0701-0702) | B96020098 |
| PAT Box | B96020096 |
| DS32 DCT Three-phase adaptor – passive Three-phase adaptor for testing from devices and cables not in operating condition | B96020100 |
Download per UNIMET® 400ST
| Tipo | Nome | Dimensione | Lingua | Timestamp | D-/B-Numero |
|---|---|---|---|---|---|
| Dichiarazioni di conformità CE | UNIMET® 300ST - 400ST | 82.8 KB | 2022/08/12 06:17:2612.08.2022 06:17:26 | ||
| Data sheet | DS32A | 450.0 KB | DE | 2019/05/13 10:31:3413.05.2019 10:31:34 | D00147 |
| Manuali di istruzioni | UNIMET® 400ST | 2.8 MB | DE | 2020/01/08 06:59:3308.01.2020 06:59:33 | D00238 |
| Manuali di istruzioni | UNIMET® 400ST | 3.8 MB | EN | 2020/01/08 07:04:0908.01.2020 07:04:09 | D00238 |
| Flyer | UNIMET® 400ST | 350.0 KB | DE | 2020/01/06 11:27:4006.01.2020 11:27:40 | D00238 |
| Depliant prodotto | UNIMET® 400ST | 396.2 KB | DE | 2020/01/16 08:15:3316.01.2020 08:15:33 | D00238 |
| Depliant prodotto | UNIMET® 400ST | 365.7 KB | EN | 2020/01/16 08:15:4416.01.2020 08:15:44 | D00238 |
| Software | Informationen zum Software Update von UNIMET | 359.9 KB | DE | 2019/05/13 10:32:0413.05.2019 10:32:04 | |
| Software | Information on the software update for UNIMET | 107.7 KB | EN | 2019/05/13 10:32:1313.05.2019 10:32:13 | |
| Manuali di istruzioni | Verpackungshinweis UNIMET® 400ST | 237.6 KB | DE | 2020/01/06 10:59:0406.01.2020 10:59:04 | D00238 |
