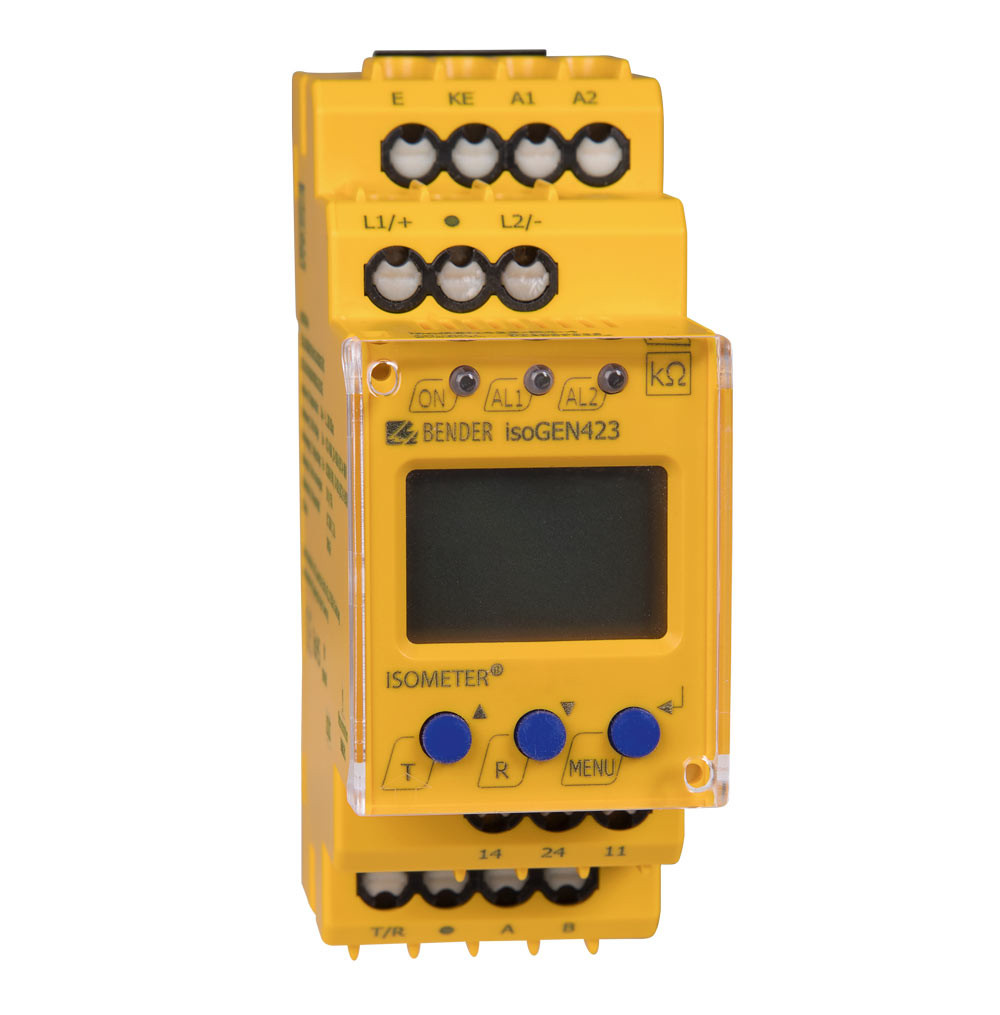

ISOMETER® isoGEN423
- Insulation monitoring device for mobile generators
- Protective isolation with insulation monitoring and shutdown
- In Accordance with DIN VDE 0100-551 and DIN EN 61557-8
- Two Response values (Factory settings 46 kΩ, 23 kΩ)
The ISOMETER® monitors the insulation resistance of unearthed AC, AC/DC and DC systems (IT systems) with nominal system voltages of 3(N)AC, AC/DC 0…400 V or DC 0…400 V.
The maximum permissible system leakage capacitance Ce is 5 μF. DC components existing in AC systems do not influence the operating characteristics, when a minimum load current of DC 10 mA flows. A separate supply voltage allows de-energised systems to be monitored, too.
- Insulation monitoring device for mobile generators
- Protective isolation with insulation monitoring and shutdown
- In Accordance with DIN VDE 0100-551 and DIN EN 61557-8
- Two Response values (Factory settings 46 kΩ, 23 kΩ)
The ISOMETER® monitors the insulation resistance of unearthed AC, AC/DC and DC systems (IT systems) with nominal system voltages of 3(N)AC, AC/DC 0…400 V or DC 0…400 V.
The maximum permissible system leakage capacitance Ce is 5 μF. DC components existing in AC systems do not influence the operating characteristics, when a minimum load current of DC 10 mA flows. A separate supply voltage allows de-energised systems to be monitored, too.
Caratteristiche
- Monitoring the insulation resistance for unearthed AC/DC systems
- Measurement of the system voltage (true r.m.s.) with undervoltage and overvoltage detection
- Measurement of DC system voltages to earth (L1+/PE and L2-/PE)
- Two operating modes: GEn and DC
- Automatic adaptation to the system leakage capacitance up to 5 μF
- Selectable start-up delay, response delay and delay on release
- Two separately adjustable response value ranges of 5…200 kΩ (Alarm 1, Alarm 2)
- Alarm signalling via LEDs (AL1, AL2), a display and alarm relays (K1, K2)
- Automatic device self test with connection monitoring
- Selectable N/C or N/O relay operation
- Measured value indication via multi-functional LCD
- Fault memory can be activated
- RS-485 (galvanically isolated) including the following protocols:
- BMS interface (Bender measuring device interface) for data exchange with other Bender components
- Modbus RTU
- IsoData (for continuous data output) - Password protection to prevent unauthorised parameter changes
Applicazioni
- AC main circuits up to 400 V
- DC main circuits up to 400 V
- Generators according to DIN VDE 0100-551
Accessori opzionali per ISOMETER® isoGEN423
| Type | Version | Art. No. |
|---|---|---|
| isoGEN423-D4-4 | Push-wire terminal | B71036325 |
| isoGEN423-D4W-4 | Push-wire terminal | B71036325W |
| Type | Art. No. |
|---|---|
| Mounting clip for screw mounting (one piece per device) | B98060008 |
| Mounting frame XM420 | B990994 |
