COMTRAXX® COM465IP
- Complete system overview
- Parameter setting for all Bender devices
- All Bender communication interfaces
- Displayed in the web browser, local software installation therefore not required
- Adaptable to individual requirements by means of function modules
The COM465IP is a Condition Monitor with an integrated gateway. The intuitive COMTRAXX user interface provides a perfect system overview and allows simple and intuitive parameterisation of all connected devices. The user interface is based on HTML5 and is therefore future-proof and provides barrier-free access. The COM465IP transmits data of all devices in the system via Modbus TCP and SNMP. This allows requests of all Bender devices with communication capability, such as EDS, RCMS, MEDICS or PEM systems, to be integrated into a Modbus TCP or SNMP system. It provides several interfaces and can therefore integrate all Bender devices and also third-party devices into the system.
Existing interfaces:
- RS-485: BMS, Modbus RTU
- Ethernet: BCOM, Modbus TCP, SNMP
In addition, the functionality can be extended by function modules. This makes it possible to adapt the device to the respective requirements.

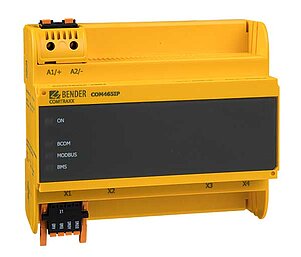

![[Translate to Italiano:] COMTRAXX® COM465IP](/fileadmin/_processed_/e/2/csm_COM465IP_01_WEB_2cdab59e1f.jpg "[Translate to Italiano:] COMTRAXX® COM465IP")
- Complete system overview
- Parameter setting for all Bender devices
- All Bender communication interfaces
- Displayed in the web browser, local software installation therefore not required
- Adaptable to individual requirements by means of function modules
The COM465IP is a Condition Monitor with an integrated gateway. The intuitive COMTRAXX user interface provides a perfect system overview and allows simple and intuitive parameterisation of all connected devices. The user interface is based on HTML5 and is therefore future-proof and provides barrier-free access. The COM465IP transmits data of all devices in the system via Modbus TCP and SNMP. This allows requests of all Bender devices with communication capability, such as EDS, RCMS, MEDICS or PEM systems, to be integrated into a Modbus TCP or SNMP system. It provides several interfaces and can therefore integrate all Bender devices and also third-party devices into the system.
Existing interfaces:
- RS-485: BMS, Modbus RTU
- Ethernet: BCOM, Modbus TCP, SNMP
In addition, the functionality can be extended by function modules. This makes it possible to adapt the device to the respective requirements.
Caratteristiche
- Condition monitor for Bender systems
- Integrated modular gateway between Bender systems and TCP/IP enables remote access via LAN, WAN
or Internet - Range of functions adjustable through function modules
- Ethernet (10/100 MBit/s) for remote access via LAN, WAN or Internet
- Support of devices that are connected to the internal or external BMS bus, via BCOM, via Modbus RTU
or Modbus TCP - Individual visualisation can be generated, which is displayed via the web browser
Applicazioni
- Remote display of the latest measured values, status/alarm messages and parameters*
- Gateway to Modbus TCP: Reading the latest measured values, status/alarm messages from addresses 1…10 of each interface via Modbus TCP
- Gateway to Modbus RTU: Reading the latest measured values, status/alarm messages from addresses 1…10 of the internal BMS interface via Modbus RTU
- Ethernet interface with 10/100 MBit/s for remote access via LAN, WAN or Internet
- Setting of internal device parameters and parameters of devices connected via Modbus RTU and Modbus TCP **
- Time synchronisation for all assigned devices
- History memory (20,000 entries)
- Data loggers, freely configurable (30 x 10,000 entries)
- 50 data points from third-party devices (via Modbus RTU or Modbus TCP) can be integrated into the system
- A virtual device with 16 channels can be created
*) Indicating parameters of BMS bus devices is only possible when the gateway is connected to the internal BMS bus.
**) Parameters can be set via web application and externally (via BMS/ICOM/BCOM), but not via Modbus. The parameters of assigned devices can only be read; Function module C is necessary for modification of settings!
COMTRAXX® COM465IP Variante/i
| Type | Supply voltage/ frequency range US | Power consumption | Application | Art. No. |
|---|---|---|---|---|
| COM465IP | AC/DC 24…240 V, 50…60 Hz | ≤ 6,5 VA/≤ 4 W | Condition Monitor with integrated gateway: Bender system/Ethernet | B95061065 |
Function modules (software license)
| Package | Application | Art. No. |
|---|---|---|
| Function module A | Individual text messages for all devices/ channels, device failure monitoring, e-mail in the event of an alarm, device documentation | B75061011 |
| Function module B | Provision of data via via Modbus TCP, Modbus RTU, SNMP and PROFINET | B75061012 |
| Function module C | Parameter setting of all integrated devices, device backups | B75061013 |
| Function module D | Visualisation application | B75061014 |
| Function module E | Virtual devices | B75061015 |
| Function module F | Integration of third-party devices | B75061016 |
Download per COMTRAXX® COM465IP
| Tipo | Nome | Dimensione | Lingua | Timestamp | D-/B-Numero |
|---|---|---|---|---|---|
| Dichiarazioni di conformità CE | COM46x | 87.3 KB | 2022/08/12 06:17:2412.08.2022 06:17:24 | ||
| Manuali di istruzioni | COM465IP/COM465DP | 8.5 MB | DE | 2022/09/30 07:06:5730.09.2022 07:06:57 | D00217 |
| Manuali di istruzioni | COM465IP/COM465DP | 8.4 MB | EN | 2022/09/30 07:07:2230.09.2022 07:07:22 | D00217 |
| Quickstarts | COM465IP/COM465DP | 1.3 MB | DE | 2021/07/08 09:16:2808.07.2021 09:16:28 | D00216 |
| Quickstarts | COM465IP/COM465DP | 1.3 MB | EN | 2021/07/08 09:16:2808.07.2021 09:16:28 | D00216 |
| Manuali di istruzioni | BCOM | 1.2 MB | DE | 2019/05/13 10:31:4013.05.2019 10:31:40 | D00256 |
| Manuali di istruzioni | BCOM | 1.2 MB | EN | 2019/05/13 10:31:4713.05.2019 10:31:47 | D00256 |
| Data sheet | COM465IP | 1.0 MB | DE | 2022/06/09 10:53:5709.06.2022 10:53:57 | D00217 |
| Data sheet | COM465IP | 1.0 MB | EN | 2022/06/09 10:54:3909.06.2022 10:54:39 | D00217 |
| Data sheet | COM465IP | 1,009.1 KB | ES | 2019/05/13 10:31:3713.05.2019 10:31:37 | D00217 |
| Software | CP9xx, CP9…-I, CP700, COM465xx - SNMP MIB-Dateien | 7.6 KB | 2021/11/26 13:38:0526.11.2021 13:38:05 | D00005 | |
| Software | COM465IP Update V4.0.2 | 37.4 MB | 2020/03/26 12:58:2226.03.2020 12:58:22 | D00217 | |
| Data sheet | COM465IP | 1.0 MB | FR | 2022/06/09 10:55:1609.06.2022 10:55:16 | D00217 |
| Avviso variazione di prodotto | COMTRAXX Update 4.0.2 | 477.3 KB | DE | 2020/05/28 10:47:0928.05.2020 10:47:09 | |
| Avviso variazione di prodotto | COMTRAXX Update 4.0.2 | 473.0 KB | EN | 2020/05/28 10:47:0928.05.2020 10:47:09 | |
| Software | GSDML V2.42 Bender COM465XX | 6.7 KB | 2022/06/07 08:34:3307.06.2022 08:34:33 | ||
| Software | COM465IP Update V4.8.3 | 31.5 MB | 2023/08/11 05:38:5511.08.2023 05:38:55 | D00217 |
