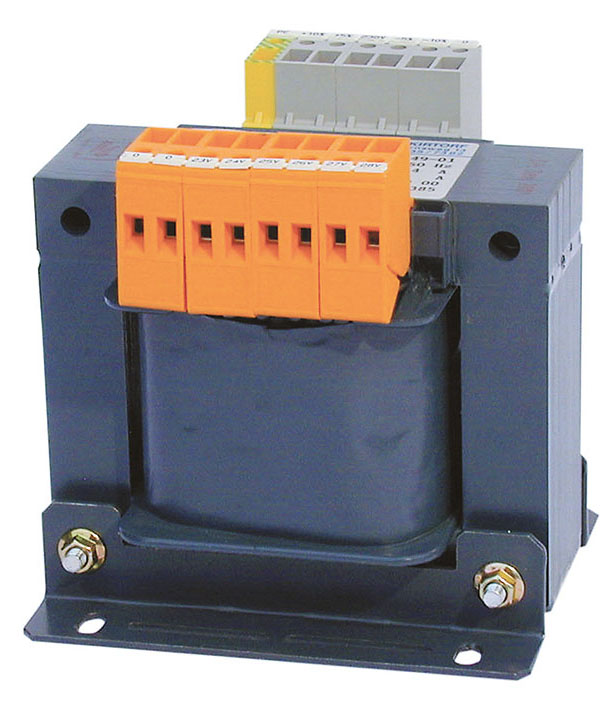

Trasformatori per lampade scialitiche ESL0107

  • Operating-theatre-light transformers
  • Voltage adaptation to primary and secondary side
  • Shield winding
  • Insulated mounting brackets
  • Reinforced insulation

The transformers of the ESL0107 series have reinforced insulation and comply with the requirements of IEC 61558-2 -6 / DIN EN 61558-2-6 (VDE 0570-1). The transformers are fitted with tapping points for fine-step voltage adaptation on the primary and secondary side and thus meet the requirements for power supplies of operating theatre luminaires in Group 2 rooms. The windings are galvanically isolated.

In order to minimize electrical interferences, an electrostatic screen is installed between the primary and secondary winding the lead out of which is connected to an insulated terminal for connection to the equipotential bonding.

The fixing angles are isolated from the transformer core in order to ensure isolated installation in accordance with the requirements of the respective standards. Protection against corrosion is guaranteed by a complete resin impregnation. The transformers are designed for use in dry locations.

Domande? Contattaci!

OP-Leuchten-Transformatoren ESL0107
OP-Leuchten-Transformatoren ESL0107
  • Operating-theatre-light transformers
  • Voltage adaptation to primary and secondary side
  • Shield winding
  • Insulated mounting brackets
  • Reinforced insulation

The transformers of the ESL0107 series have reinforced insulation and comply with the requirements of IEC 61558-2 -6 / DIN EN 61558-2-6 (VDE 0570-1). The transformers are fitted with tapping points for fine-step voltage adaptation on the primary and secondary side and thus meet the requirements for power supplies of operating theatre luminaires in Group 2 rooms. The windings are galvanically isolated.

In order to minimize electrical interferences, an electrostatic screen is installed between the primary and secondary winding the lead out of which is connected to an insulated terminal for connection to the equipotential bonding.

The fixing angles are isolated from the transformer core in order to ensure isolated installation in accordance with the requirements of the respective standards. Protection against corrosion is guaranteed by a complete resin impregnation. The transformers are designed for use in dry locations.

Domande? Contattaci!

Caratteristiche

  • Screen winding lead out for external connection
  • Insulated mounting angles
  • Degree of protection IP 00 (construction type: open)
  • Reinforced insulation
  • Classification of insulation ta 40/E
  • Connections: screw terminals
  • Vector group: IiO

Trasformatori per lampade scialitiche ESL0107 Variante/i

TypeArt. No.
ESL0107/120B924632
ESL0107/160B924633
ESL0107/280B924634
ESL0107/400B924637
ESL0107/630B924638
ESL0107/1000B924639

Download per Trasformatori per lampade scialitiche ESL0107

NomeTipoDimensioneLinguaTimestampD-/B-Numero
ESL0107 - DS0107 Dichiarazioni di conformità CE 91.1 KB 2022/08/1212.08.2022
ESL0107 Data sheet 348.1 KB DE2019/05/1313.05.2019D00110
ESL0107 Data sheet 352.4 KB EN2019/05/1313.05.2019D00110
ESL0107 Data sheet 507.9 KB ES2019/05/1313.05.2019D00110
Sicherheits-, Montage- und Wartungshaltungshinweise für Trenn-Transformatoren Manuali di istruzioni 699.6 KB DE2022/06/1414.06.2022D00463
Safety, installation and maintenance instructions for isolating transformers Manuali di istruzioni 699.6 KB EN2022/06/1414.06.2022D00463
