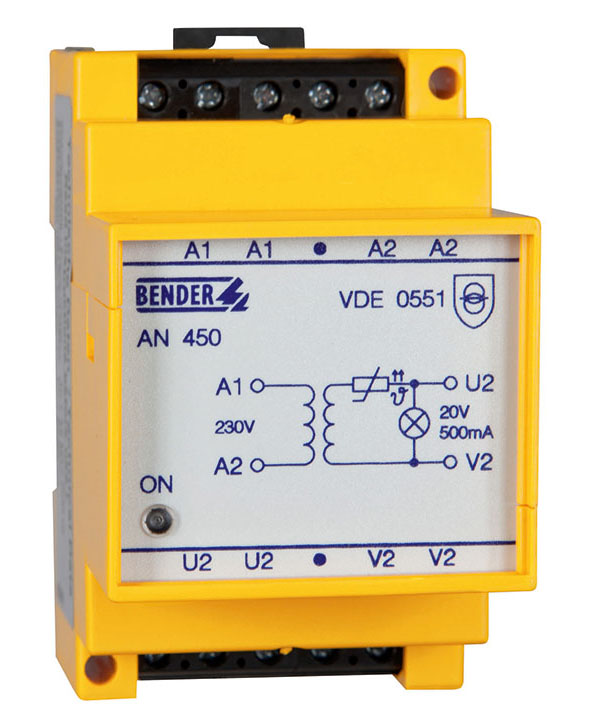

AN450
The power supply unit AN450 is designed to supply Bender devices with a supply voltage of AC 20 V and a total power consumption of maximum 9 VA.
A maximum of 3 alarm indicator and test combinations MK2430 can be supplied, for example.
![[Translate to Italiano:] AN450](/fileadmin/_processed_/4/5/csm_AN450_02_WEB_7560a00764.jpg "[Translate to Italiano:] AN450")
The power supply unit AN450 is designed to supply Bender devices with a supply voltage of AC 20 V and a total power consumption of maximum 9 VA.
A maximum of 3 alarm indicator and test combinations MK2430 can be supplied, for example.
Caratteristiche
- Power supply unit for the supply of Bender devices with AC 20 V and a power consumption of maximum 9 VA
- Supply of 3 MK2430 alarm indicator and test combinations (for example)
- Protected secondary circuit
Applicazioni
- Supply of Bender devices - with AC 20 V and a power consumption of maximum 9 VA
AN450 Variante/i
| Type | Supply voltage US | Output voltage | Art. No. |
|---|---|---|---|
| AN450 | AC 230 V, 50…60 Hz | AC 20 V, 50…60 Hz | B924201 |
| AN450-133 | AC 127 V, 50…60 Hz | AC 20 V, 50…60 Hz | B924203 |
Download per AN450
| Tipo | Nome | Dimensione | Lingua | Timestamp | D-/B-Numero |
|---|---|---|---|---|---|
| Dichiarazioni di conformità CE | AN450 | 86.7 KB | 2022/08/12 06:17:2112.08.2022 06:17:21 | ||
| Data sheet | AN450 | 285.7 KB | DE | 2019/05/13 10:31:3313.05.2019 10:31:33 | D00100 |
| Data sheet | AN450 | 243.0 KB | EN | 2019/05/13 10:31:3513.05.2019 10:31:35 | D00100 |
| Data sheet | AN450 | 239.2 KB | ES | 2019/05/13 10:31:3713.05.2019 10:31:37 | D00100 |
| Manuali di istruzioni | AN450 | 501.2 KB | DE | 2019/05/13 10:31:4013.05.2019 10:31:40 | D00100 |
| Manuali di istruzioni | AN450 | 501.2 KB | EN | 2019/05/13 10:31:4013.05.2019 10:31:40 | D00100 |
| Manuali di istruzioni | AN450 | 134.6 KB | FR | 2019/05/13 10:31:5413.05.2019 10:31:54 | D00100 |
