LINETRAXX® RCMB42…

  • 6mA DC sensor, type A RCD sufficient
  • AC/DC sensitive residual current measurement
  • Fault current monitoring with external residual current transformer
  • Integrated fault memory (adjustable)

The AC/DC sensitive residual current monitoring module RCMB42… is used for residual current monitoring of AC charging stations for electric vehicles where direct or alternating fault currents are likely to occur, the value of which is constantly greater than zero.

Domande? Contattaci!

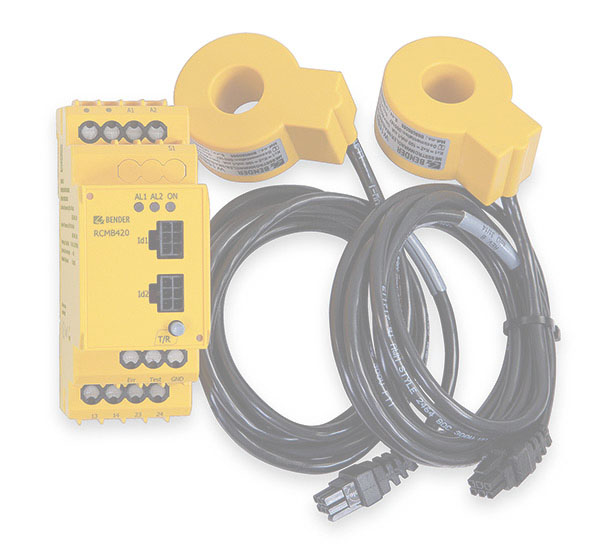

LINETRAXX® RCMB42…EC
LINETRAXX® RCMB42…EC
  • 6mA DC sensor, type A RCD sufficient
  • AC/DC sensitive residual current measurement
  • Fault current monitoring with external residual current transformer
  • Integrated fault memory (adjustable)

The AC/DC sensitive residual current monitoring module RCMB42… is used for residual current monitoring of AC charging stations for electric vehicles where direct or alternating fault currents are likely to occur, the value of which is constantly greater than zero.

Domande? Contattaci!

Caratteristiche

  • DC sensor with additional AC tripping (type B characteristic)
  • Response value 2 – AC/DC 30 mA: r.m.s. measurement
  • Response value 1: DC 6 mA
  • Frequency range, residual current 0…2000 Hz
  • Frequency range, load current 45…65 Hz
  • Monitoring of the connection to the measuring current transformer
  • Shielded residual current transformer to prevent the effects of external disturbances
  • Connection by means of push-wire terminals
  • Variants: Single and two-channel residual current measurement

LINETRAXX® RCMB42… Variante/i

TypeMeasuring rangeFrequency
range
Number of measuring
current transformers
(ø 15 mm, 1.5 m Cable)
ChannelsSupply voltage USArt. No.
RCMB420-2DC 0…6 mA /
AC/DC 0…30 mA (r.m.s.)
0…2000 Hz22x residual currentAC 110…240 V, 50/60Hz /
DC 150…220 V
B74042500
RCMB420-25DC 0…6 mA /
AC/DC 0…30 mA (r.m.s.)
0…2000 Hz22x residual currentDC 18…36 VB74042503
RCMB422-2DC 0…6 mA /
AC/DC 0…30 mA (r.m.s.)
0…2000 Hz11x residual currentAC 110…240 V, 50/60Hz /
DC 150…220 V
B74042502
RCMB422-25DC 0…6 mA /
AC/DC 0…30 mA (r.m.s.)
0…2000 Hz11x residual currentDC 18…36 VB74042504

Delivery incl. measuring current transformers.
Measuring current transformer available with shorter cable on request (minimum order quantity 250 pcs).

Accessori opzionali per LINETRAXX® RCMB42…

TypeArt. No.
Mounting clip for screw mounting (one piece per device)B98060008
Mounting frame XM420B990994
