ISOMETER® iso415R

ISOMETER® iso415R

  • Insulation monitoring device for AC and DC IT systems
  • Application: Control circuits & auxiliary circuits
  • Two response values adjustable via rotary switch
  • Measured value display via LED band

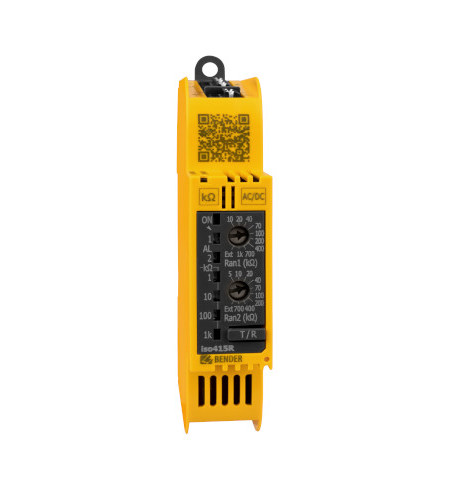

  • Very compact - only 1TE width (18 mm)

The new ISOMETER® iso415R is a simple and intelligent ground-fault monitor for electrical safety in control circuits and other applications. It is for ungrounded systems for compliance with IEC 60364-4, and meets IEC 61557-8 requirements. It combines easy operation, multiple interfaces, flexible application options and a compact design. It is the first device of Bender's new SmartDetect series and offers maximum safety in ungrounded AC, AC/DC, and DC systems.

Fast, simple operation was a central goal in the development of the new iso415R. That is why the parameters of the ISOMETER® can be set either with two rotary potentiometers, with the Bender Connect app, or with Modbus RTU communications. With the app, the iso415R can be set up before installation. In addition, a setting made once can be transferred to any number of devices. All technical information including the manual can be conveniently accessed at any time via the QR code. The measured value is displayed by LEDs. The device, which is only 18 mm (0.7”) wide, is installed by simply pushing it into place on a DIN rail.

Easy configuration via app

With the NFC function and the Bender Connect App you can easily configure the iso415R via a smartphone.



  • Features
  • Applications
  • Ordering information
  • Downloads
  • Monitoring of the insulation resistance for unearthed 3(N)AC, AC and DC systems with galvanically connected rectifiers
  • Automatic adaptation to the system leakage capacitance up to 25 μF
  • Response time ≤ 6 s at Ce = 1μF and Rf = Ran/2
  • Automatic device self test with connection monitoring
  • Two separately adjustable response value ranges from 5 kΩ…1000 kΩ
  • Alarms are output via LEDs (AL1, AL2) and an alarm relay
  • Selectable N/C or N/O relay operation 1
  • Selectable start-up delay, response delay and delay on release 1
  • Fault memory 1
  • RS-485 interface with Modbus RTU protocol
  • NFC interface

    1 Only adjustable via Modbus RTU or Bender App.
  • Large-scale plants with many control circuits
  • Applications requiring a communications interface
  • Main circuits up to 400 V in small ungrounded systems (AC and DC) without VFDs



Variants of ISOMETER® iso415R


TypeSupply voltage UsNominal system voltage UnArt. No.
iso415R-24DC 24 VAC 0…415 V / DC 0…400 VB71602000
iso415R-2AC/DC 100…240 V(3)AC 100…240 V, 3NAC 100…415 V / DC 100…240 VB71603000
