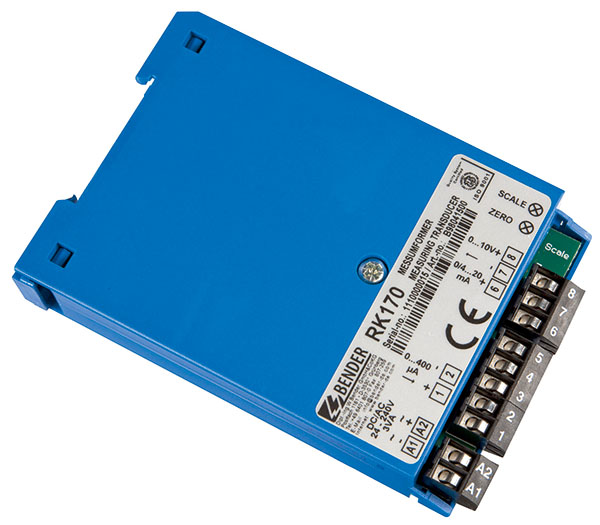

The measuring transducer RK170 is designed to convert current signals of measuring instrument outputs of ISOMETER®s (0…400 µA) and residual current monitors (RCM, RCMA) into standard current signals 0(4)…20 mA or into voltage signals (0…10 V). These currents and voltages are usually required in process technology.

  • Features
  • Applications
  • Ordering information
  • Downloads
  • Plastic enclosure for DIN rail mounting
  • Zero setting 0 or 4 mA
  • Electrical separation between the input and output signal
  • Conversion of DC 0…400 µA current signals into 0(4)…20 mA or 0…10 V signals
  • For ISOMETERs ® and residual current monitors RCM, RCMA with measuring instrument output of DC 0…400 µA


Variants of RK170

TypeSupply voltage USArt. No.
RK170AC 19…264 V*/ DC 20…297 V*B98041500
*Absolute value
